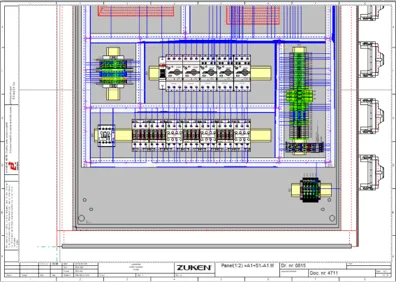

E³.panel enables full documentation of the control panel and switch gears while the built-in design rule checks prevent errors from entering the manufacturing page

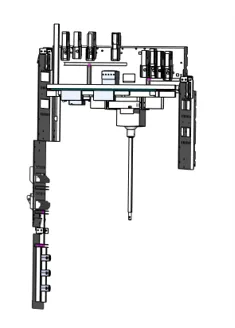

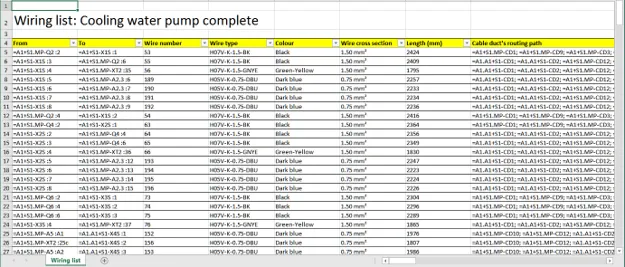

Working with 3D models integrated with E³.Schematic provides the shortest path wire routine and length calculation because of its advanced functionality. Changes made in the panel or schematic are immediately reflected across the design process. It easily navigates between the 2D schematic and 3D panel view. It has a cut-out add-on feature to provide the cut-out area for the manufacturing export, punching, drilling and cutting details for the production.
